opLabBox ver 2.0

  • 10 - 24 Units
    US $2500.00
  • >=25 Units
    US $2000.00
Usage:
Paper Testing Instrument Auto Testing Machine Plastic Testing Machine Compression Testing Machine Leather Testing Instrument Wood Testing Instrument Strength Testing Machine Tensile Testing Machine Hardness Tester Textile Testing Instrument Process Testing Machine Glass Testing Instrument Abrasion Tester Impact Testing Machine Vibration Testing Machine Drop Tester Cement Testing Machine Torsion Tester Bending Testing Machine Balancing Machine Deformation Testing Machine Universal Testing Machine Other
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Poland
Brand Name:
Optel
Model Number:
opLabBox ver 2.0
Power:
12V DC (10.5-15V)
Application:
NDT
Measuring range:
ultrasound
Packaging & Delivery
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(day) 21 To be negotiated
Product Description

OPLabBox 2.0 is particularly well suited for ultrasonic measurements. Wide bandwidth amplifier with a switched bandpass filter and integrated pulser makes this device suitable for a variety of ultrasonic applications in the industry as well as in the laboratory.

It is designed to work as a self-sufficient scope adapter, however, it can be used as an expansion box to other signal processing devices. Together with our ultrasonic testing devices (OPCARD or OPBOX) enables to implement a complete ultrasonic system with full hardware and software support.

OPLabBox is particularly well suited for ultrasonic measurements. Wide bandwidth amplifier with switched bandpass filter and integrated pulser makes this device suitable for a variety of ultrasonic applications. It is designed to work as a self-sufficient scope adapter however, it can be used as an expansion box to other signal processing devices. Together with our ultrasonic testing devices (OPCARD or OPBOX) enables to implement a complete ultrasonic system with full hardware and software support.

Specifications:
Power supply:
- Supply Voltage: 12V DC (10.5-15V)
- Power: Typ 2.5W, max 6W
Size (LxWxD):200x110x43 [mm] 7.9x4.3x1.7 [inch]
Analog parameters:
- Input channels: 2 (switched): send & receive and receive
- Input range: 550mVpp
- Input impedance: 50 / 200 ohms
- Bandwidth [-3dB]: 40kHz to 25MHz
- High Pass Filter [Hz] (switched): 40k, 80k, 160k, 320k, 640k, 1.25M, 2.5M, 5M
- Low Pass Filter [Hz] (switched): 200k, 400k, 800k, 1.6M, 3.2M, 6.4M, 12.5M, 25M
- Input amplifier gain: 104dB total gain range: -10 to 70dB step 0.1dB, +0 or +24dB switched post amplifier.
- Output range: 2.5Vpp
- Output impedance: 2.5Vpp
- Trigger: Internal or external
- PRF: max 10kHz

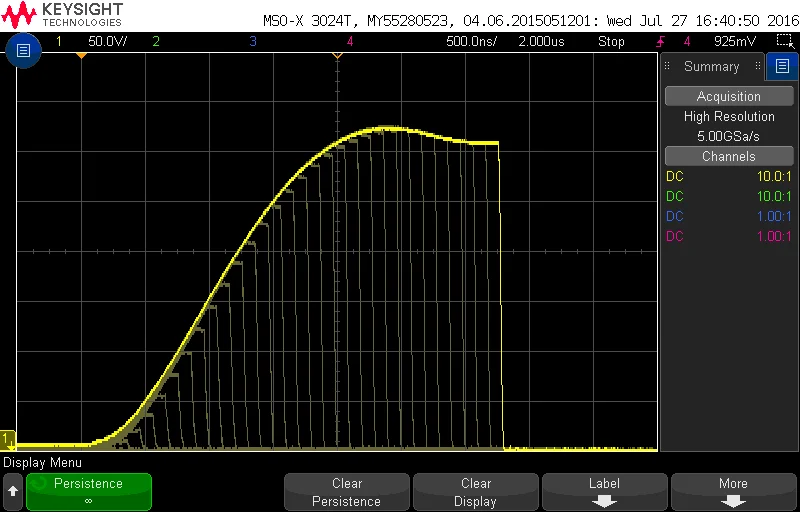

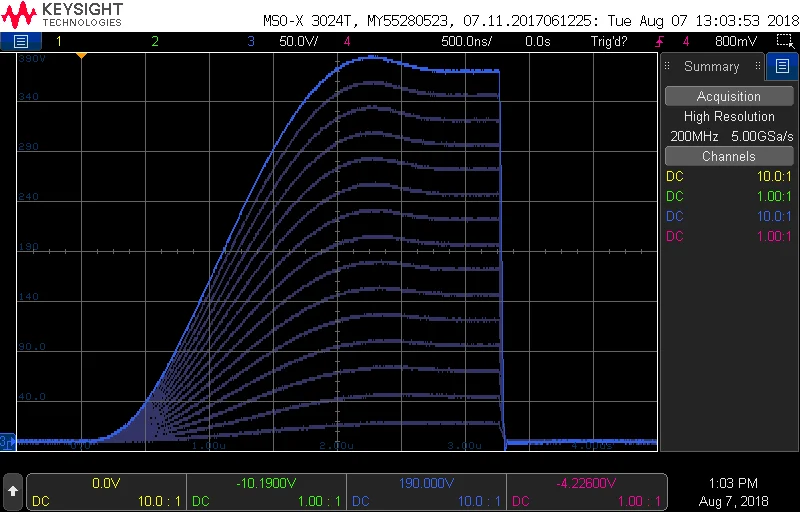

- Pulser: Step pulser, 0V 360V fluently regulated, <40ns edge falling time
- Memory: Memory settings up to 10 sets
- Remote control: USB (virtual RS232 COM) ASCII protocol
General Description:
OPLabBox is a wide bandwidth (40kHz to 25MHz) low-noise amplifier with a switched bandpass filters and integrated step pulser. The device can be used in classic ultrasonic applications with one or two ultrasonic transducers as well as universal broadband signal amplifier. The new design has a graphical 2-inch LCD display and user-friendly interface. Remote control functionality allows being used in automatic measurements setups.


Features:
- Low noise pre-amplifier
- Switchable input impedance
- Separately switchable low- and high-pass filters
- More than 100dB total analogue gain range
- 80dB regulated range with 0.1dB step
- Intuitive user interface with graphics LCD
- Compact size, Various mounting options
- Low power consumption (typical 2.5 W)
- Easy to use ASCII protocol over USB
- Store up to 10 settings sets
- Self-hardware diagnostic

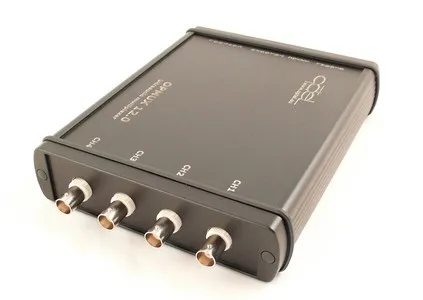

Ultrasonic multiplexer

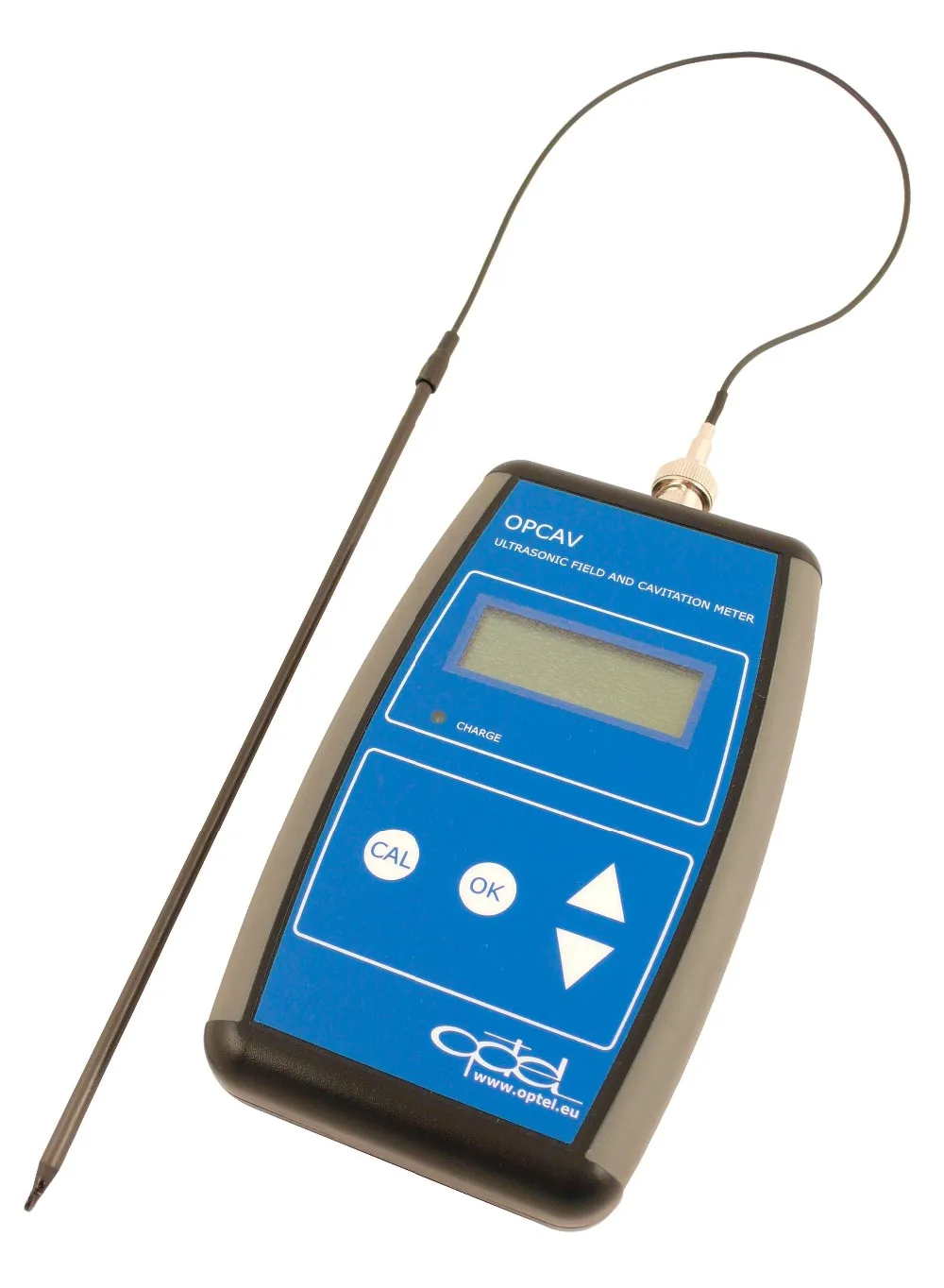

Ultrasonic cavitation meter
Related Products

Ultrasonic Pulser & Receiver

Ultrasonic testing boxes (Flaw detectors)


Ultrasonic Testing Card (Flaw detectors)

Our Company

Optel Sp. z o.o. (Ltd) is an innovative company established in 1989. It employs a team of engineers, that is passionately following their goal to create new, innovative products. We specialize in ultrasonic technologies and after decades of gaining experience, we have become renown specialists in this area. In past years, we have been solving with good results technical problems of our customers. Our company is a member of the Polish Chamber of Commerce for High Technology and the European Association for Biometrics – Human Identity in Europe.

We have collected very comprehensive know-how in many areas of ultrasonic technology.

We provide a wide range of ultrasonic instruments and NDT inspection system solutions adapted to your needs.

OPCARD, OPBOX flaw detector family with OPMUX multiplexer are a high performance, precise multi-channel ultrasonic testing instruments designed to deliver solutions for ultrasonic NDT inspection systems. Combined with software with specific imaging and analysis tools, they offer the best solution for all your ultrasonic inspection needs. A variety of configurations allows us to provide a wide range of instruments and inspection system solutions. They are based on many years of experience, that we have collected since 1989.

All our instruments are designed for use in the ultrasonic inspection system for automated or manual inspection in on-line or off-line solutions or as a stand-alone system for industrial or in laboratory applications.

Due to its universality, flexibility and easy to use software, OPCARD, OPBOX, OPMUX instruments are ideal for testing:

- spot welds
- wall thickness
- welds
- shafts, rods, pipes and sheets
- and much more...

We design and develop for you online or offline ultrasonic inspection solutions specially adapted to your needs. All our systems are also suitable for upgrading old NDT devices with up to date technique. We can help you design your own ultrasonic system or update your system to the latest technology standards. You can extend the range of application based on our high-performing, cost-efficient ultrasonic instruments, proven in many applications around the world, reliable, user-friendly and flexible. You are welcome to use our ultrasonic know-how and integrate our ultrasonic instruments in your or your customer inspection system.
